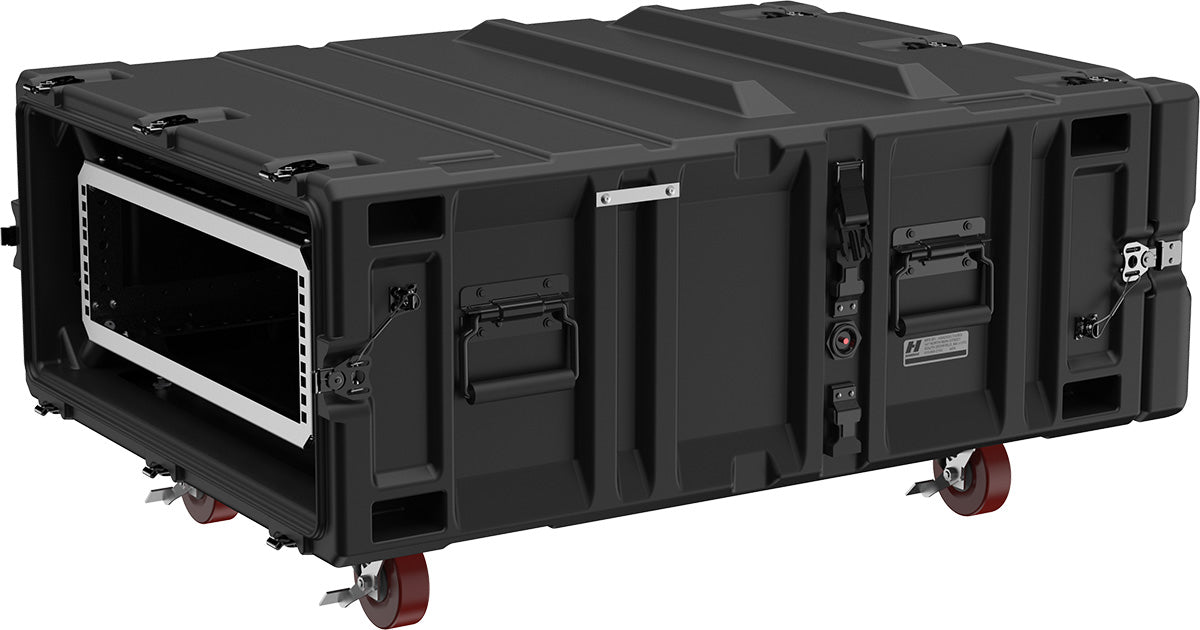

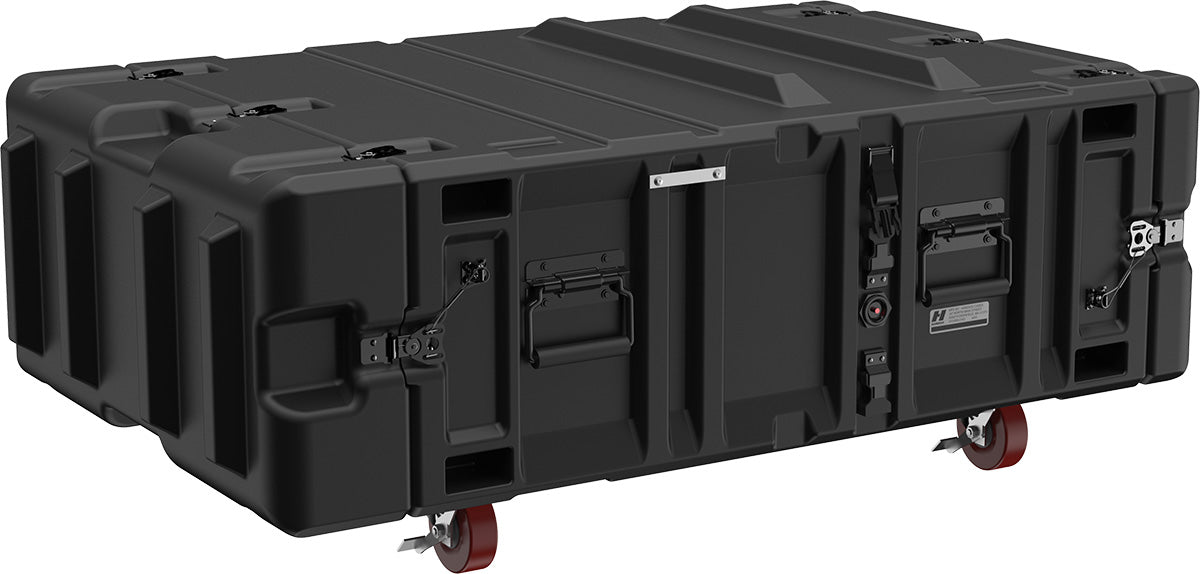

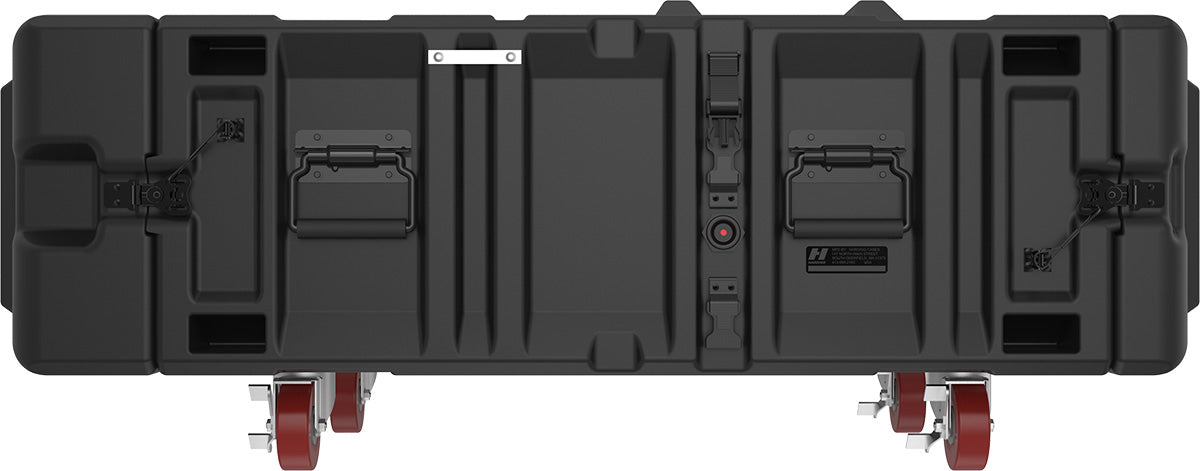

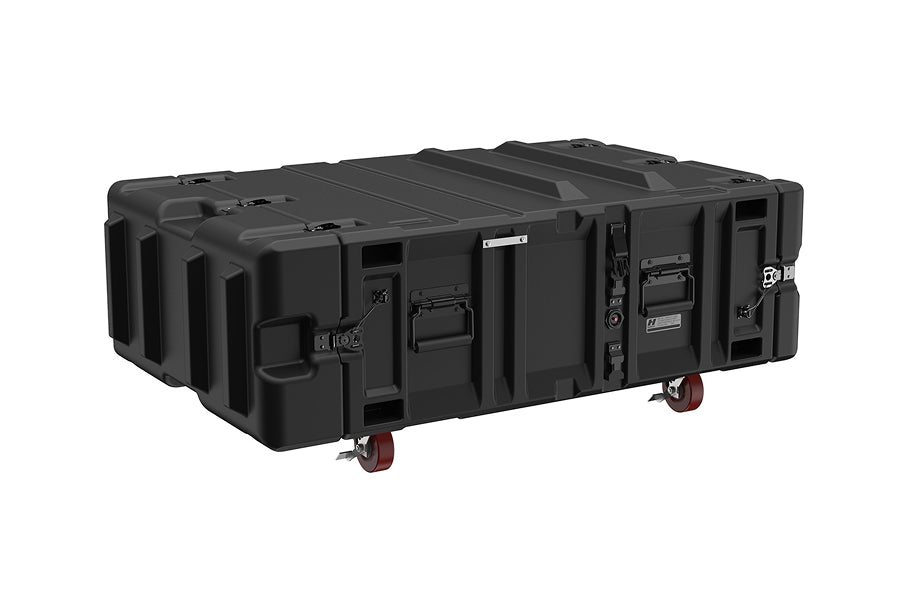

Pelican Classic V 3U Rack Mount Case

• Available in 3U, 4U, 5U, 7U, and 9U
• Engineered to provide secure transport for rack mountable electronics
• Equipment payload weight ranges for 3U – 5U = 80-100 lbs. (36-45 kg) per case
• Equipment payload weight ranges for 7U – 9U = 100-170 lbs. (45-77 kg) per case
• Black case with Anti-Reflective zinc cobalt black (HCB) catch-and-strike hardware
• 2 Lockable Cable Catches per lid to provide security for your equipment
• Black stainless steel handles
• Lid hangers for lid storage while in use
• Molded stacking ribs and coupling catches to secure cases when stacked

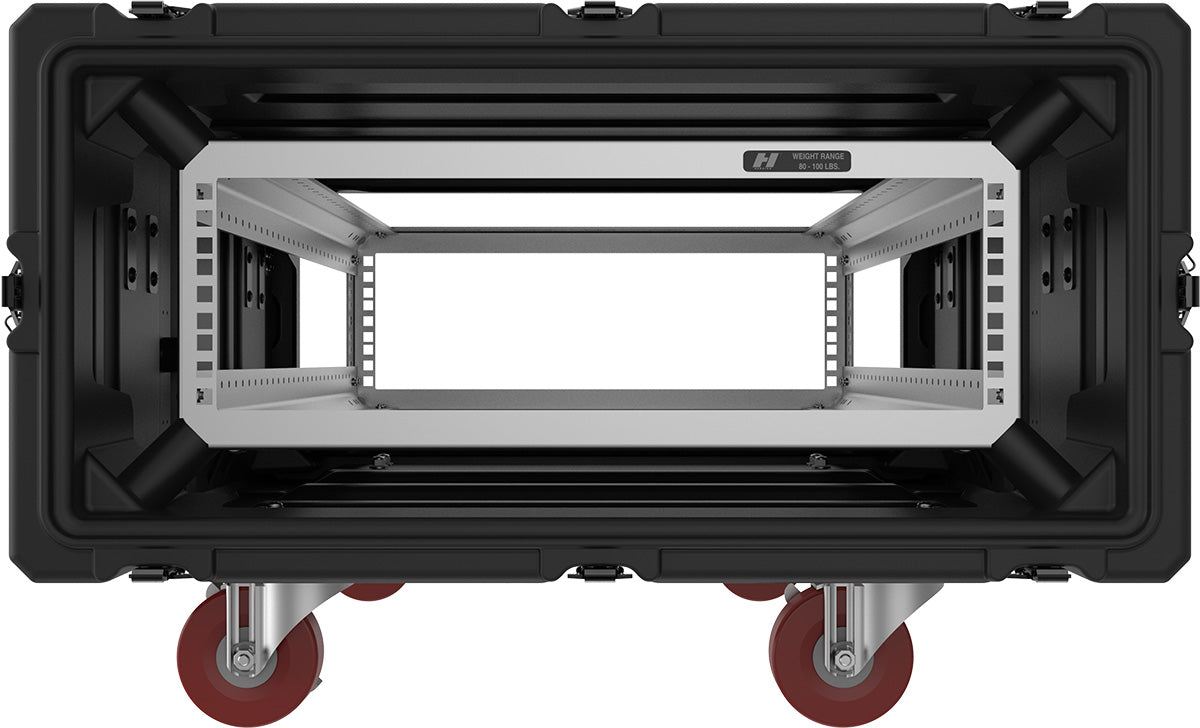

• 19" (48 cm) wide, 33" (83 cm) deep fixed square hole frame for universal equipment fit
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• 4 removable 3.5" (8.9 cm) heavy duty bottom casters
• Choice of SAE 10-32 or Metric M6 clip nuts
• REACH and RoHs compliant

DIMENSIONS

Exterior (L×W×D):

45.8 x 27 x 12.3 in

(116.3 x 68.6 x 31.2 cm)

MEASUREMENTS

Rack Height: 5.25" (13.3 cm)

Rack Depth: 33" (83.8 cm)

Interior Lid Depth: 2.5" (6.4 cm)

Interior Back Lid DepthL: 5.25" (13.3 cm)

WEIGHTS

Weight: 51 lbs (23.1 kg)

MATERIALS

• Body Material
• RotoMolded Polyethylene
• O-Ring Material
• Silicone Sponge
• Purge Body Material
• Aluminum
• Hardware Material
• Stainless Steel (Black Oxide) / RoHs Nickel Black
• Frame Material
• Steel (Clear Coated)
