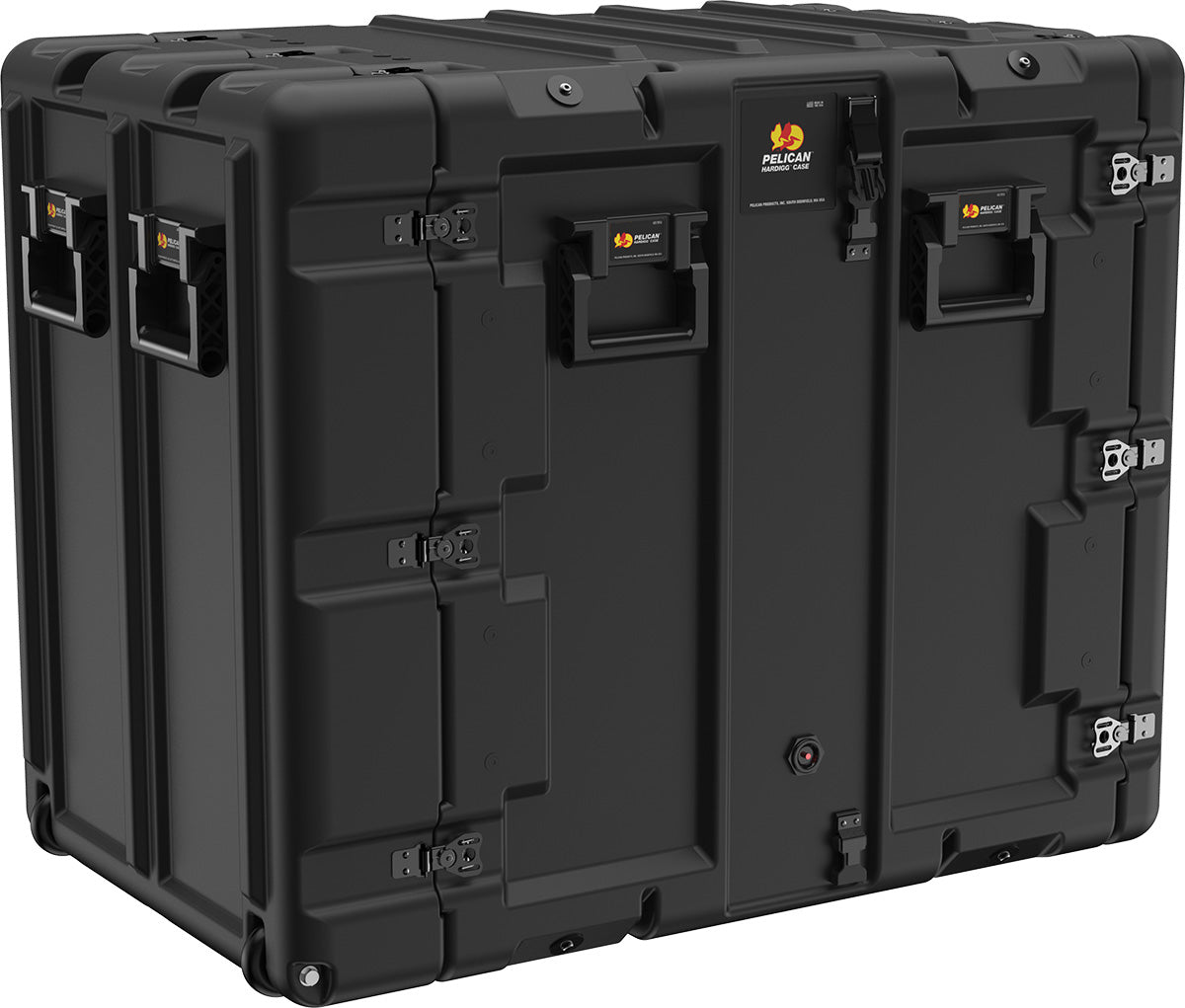

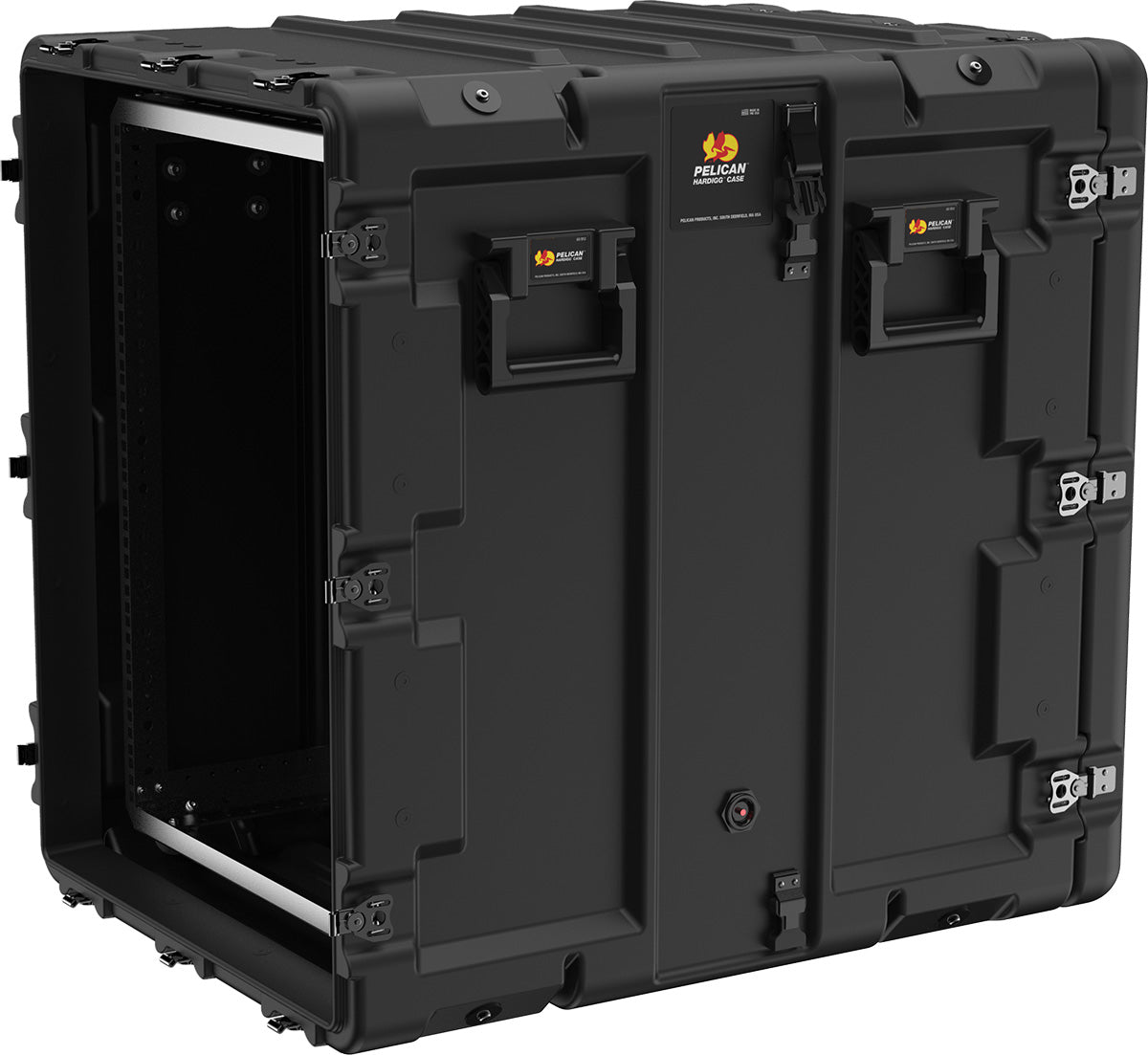

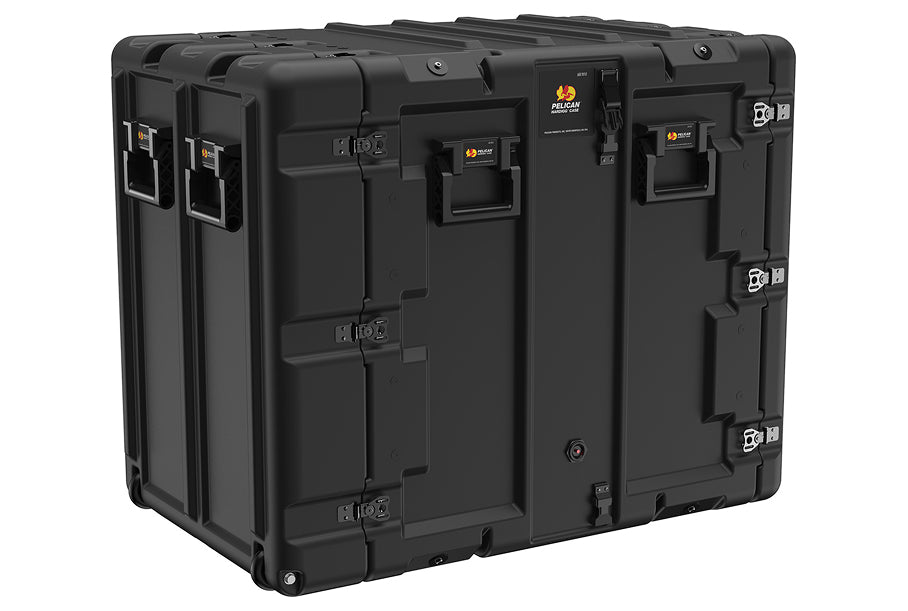

Pelican Super V 14U Rack Mount Case

• SUPER V-SERIES 14U, 2128-02/29/05W
• Engineered to provide secure transport for rack mountable electronics
• Equipment payload weight ranges for 3U – 5U = 80-100 lbs. (36-45 kg) per case
• Weight ranges for 7U – 14U = 100-170lbs per case

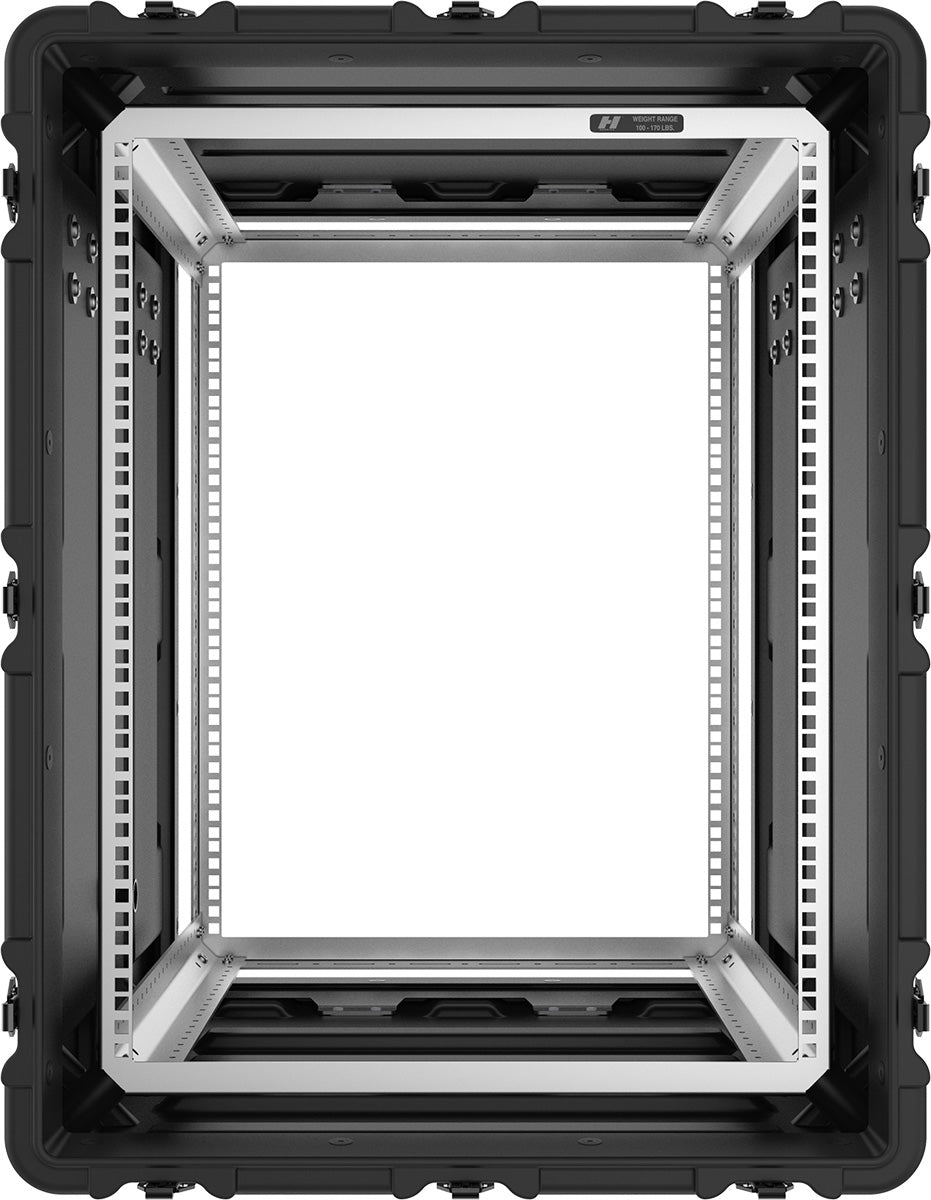

• Fixed square hole frame for universal equipment fit
• 2” Front Lid, 5” Rear Lid
• Lid hangers for lid storage while in use
• Anti-reflective black hardware
• Coupling catches for secure stacking
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
• Comfort Grip plastic handles
• Molded in rear edge casters with handles on the lid for ease of movement
• REACH and RoHs compliant
• Available in 3U, 4U, 5U, 7U, 9U, 11U, and 14U

DIMENSIONS

Exterior (L×W×D):

38.5 x 28.3 x 30.6 in

(97.8 x 71.9 x 77.7 cm)

MEASUREMENTS

• Rack Height: 24.5" (62.2 cm)
• Rack Depth: 24" (61 cm)
• Interior Lid Depth: 2.2" (5.6 cm)
• Interior Back Lid Depth: 5.2" (13.2 cm)

WEIGHTS

• Weight: 74 lbs (33.6 kg)

MATERIALS

• Body Material
• RotoMolded Polyethylene
• O-Ring Material
• Silicone Sponge
• Purge Body Material
• Aluminum
• Hardware Material
• Stainless Steel (Black Oxide) / RoHs Nickel Black
• Frame Material
• Steel (Clear Coated)
