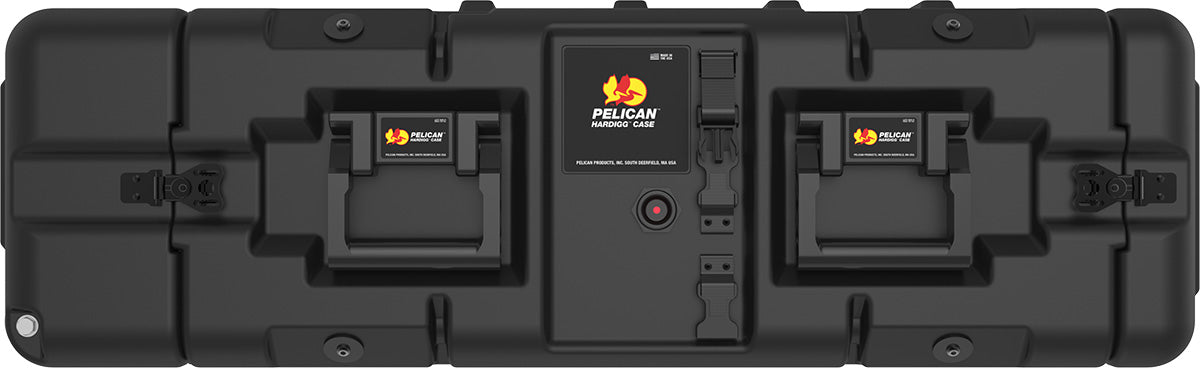

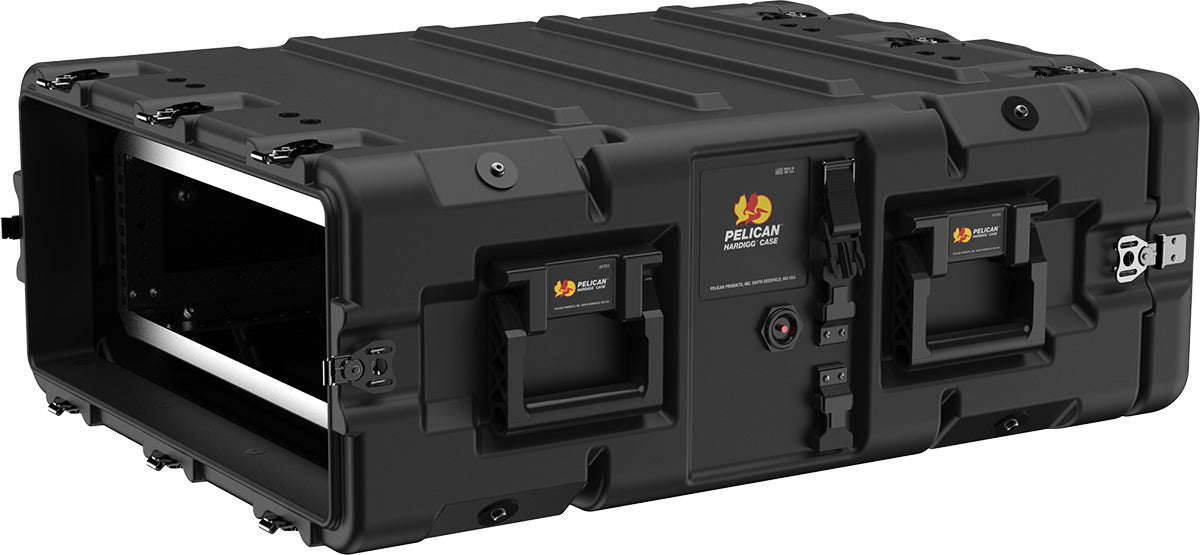

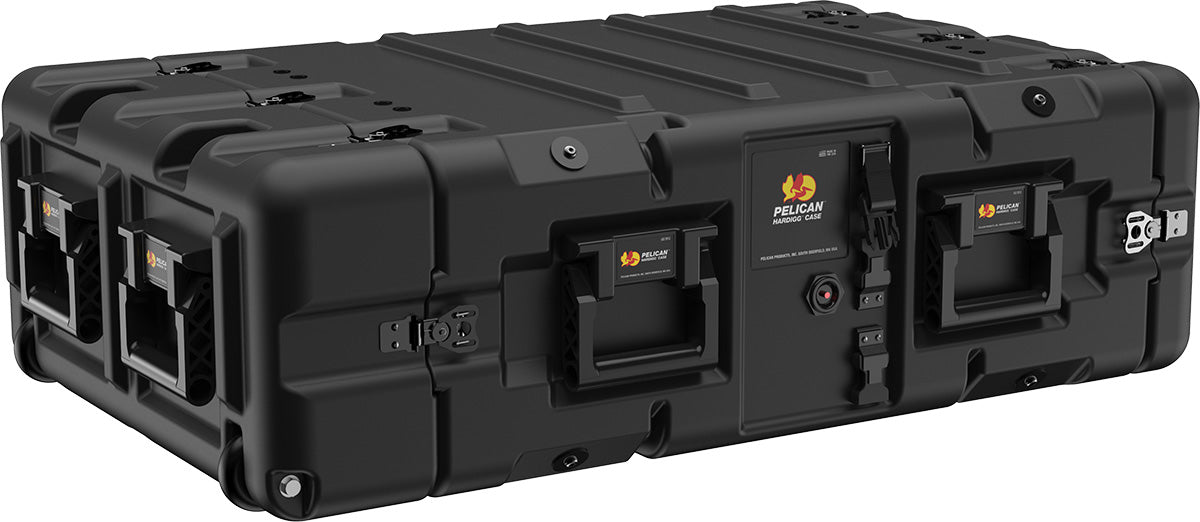

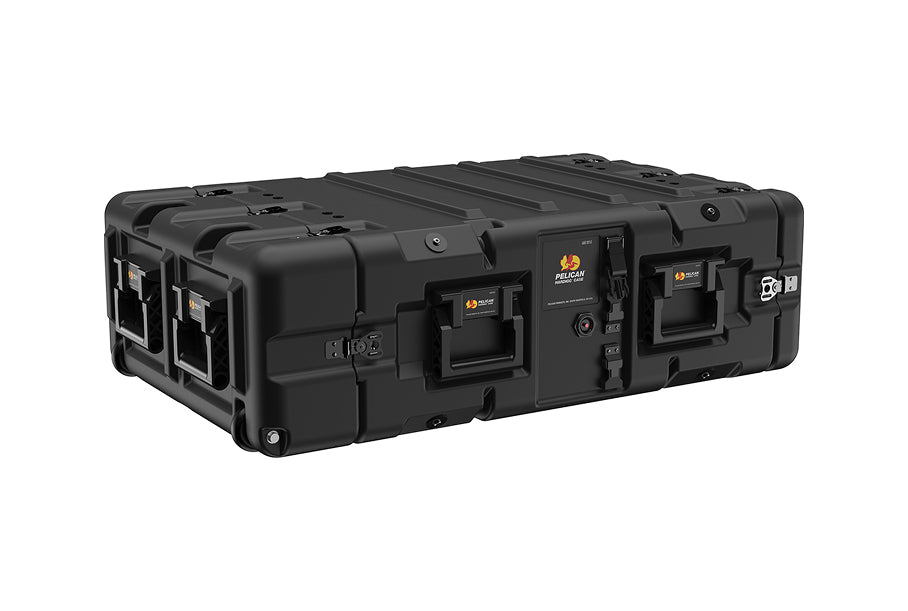

Pelican Super V 3U Rack Mount Case

• High-strength steel rack frame supports equipment from 10 - 50 kg
• Designed to meet the requirements of Def Stan 81-41 Level J, Mil Standard 810, STANAG 4340 and other European standards.
• Designed to meet ANSI/EIA-310-C for universal rack mounting hole pattern
• 10 different models, frame heights 4-12U in two depths, 480 and 610mm

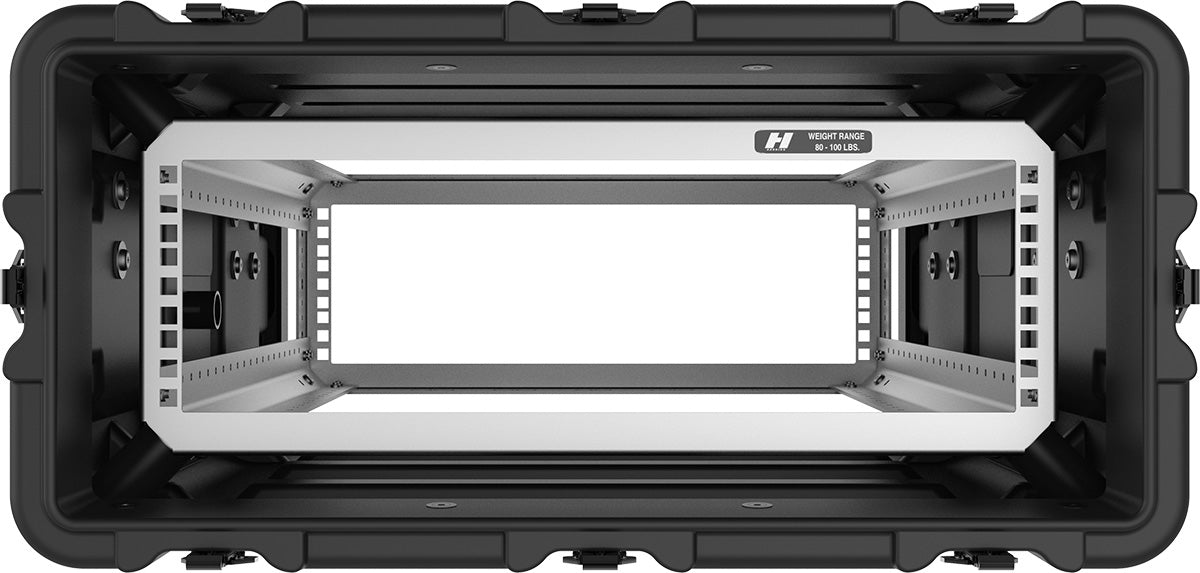

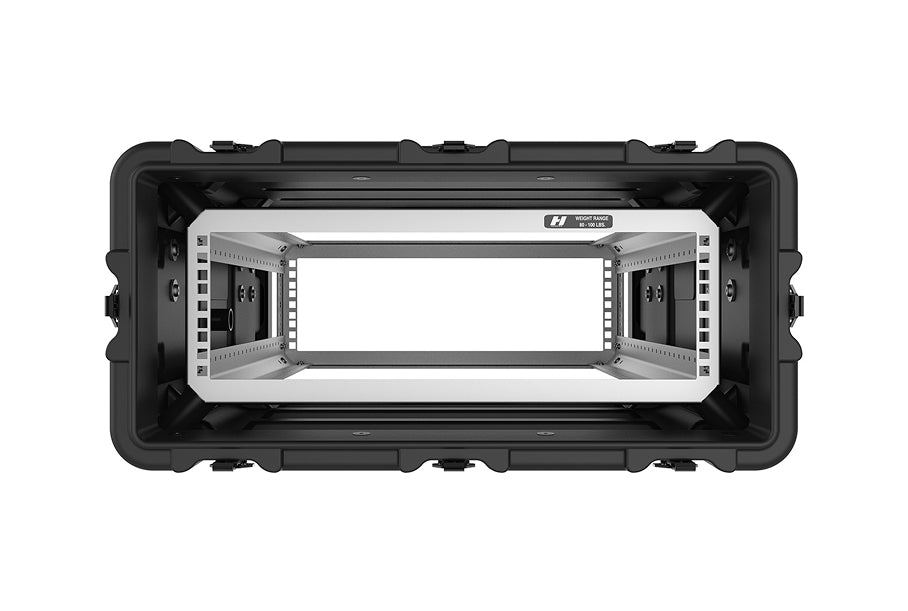

• Fixed square hole frame for universal equipment fit
• 2” Front Lid, 5” Rear Lid
• Lid hangers for lid storage while in use
• Anti-reflective black hardware
• Coupling catches for secure stacking
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
• Comfort Grip plastic handles
• Molded in rear edge casters with handles on the lid for ease of movement
• REACH and RoHs compliant

DIMENSIONS

Exterior (L×W×D):

38.5 x 28.3 x 11.4 in

(97.8 x 71.9 x 29 cm)

MEASUREMENTS

• Rack Height: 5.25" (13.3 cm)
• Rack Depth: 24" (61 cm)
• Interior Lid Depth: 2.2" (5.6 cm)
• Interior Back Lid Depth: 5.2" (13.2 cm)

WEIGHTS

• Weight: 50 lbs (22.7 kg)

MATERIALS

• Body Material
• RotoMolded Polyethylene
• O-Ring Material
• Silicone Sponge
• Purge Body Material
• Aluminum
• Hardware Material
• Stainless Steel (Black Oxide) / RoHs Nickel Black
• Frame Material
• Steel (Clear Coated)
